High Bay Lighting LED

PRODUCT DESCRIPTION

The Light Corp Zeon™ Circular LED High Bay luminaire is designed to deliver efficient lumen per watt packages with precision optic options. Reliable, highly eficient unit features a modular, aluminum design with field interchangeable optics. Ideal one-for-one replacement of conventional HID and fluorescent high bay systems. Delivering higher lumen per watt efficacy with surface footcandles comparable to 4 and 6 lamp linear fluorescent or 200W to 400W Metal Halide lighting systems while drawing less wattage, lasting significantly longer and entirely eliminating the maintenance costs of re-lamping and re-ballasting.



APPLICATION

  • Super long lasting, solid-state, energy-efficient LED technology
  • Available in 90w, 120w, 180w versions

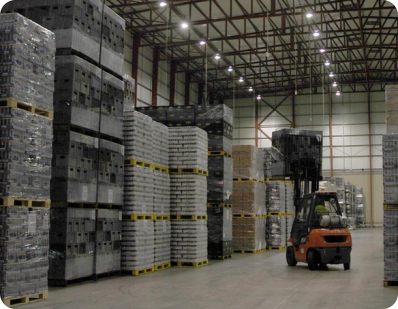

  • Designed for retail stores, manufacturing plants, warehouses, convention centers, gymnasiums, arenas and more.

HANGING

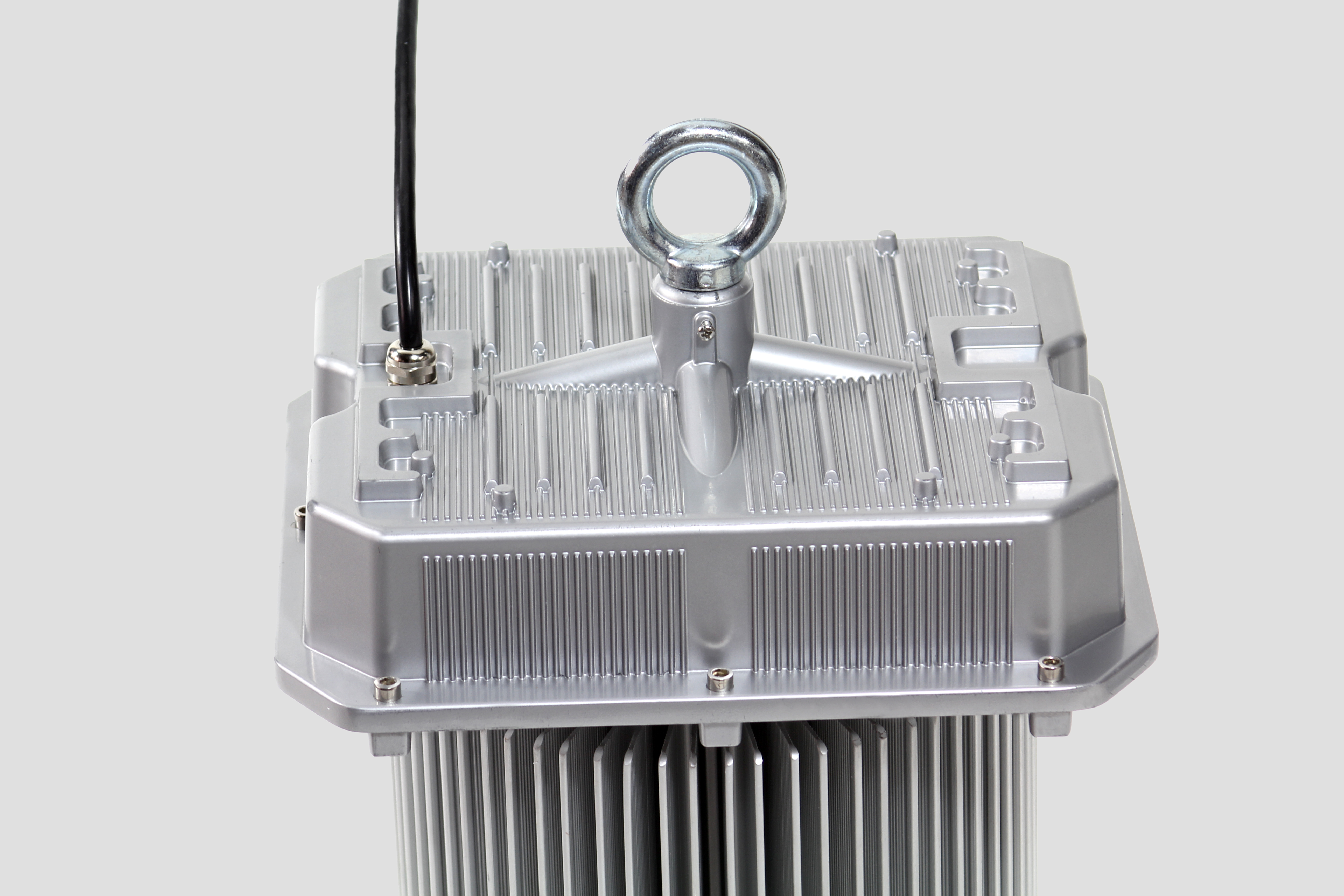

  • Universal eye-hook or pendant mount, & jack chain options

CONSTRUCTION

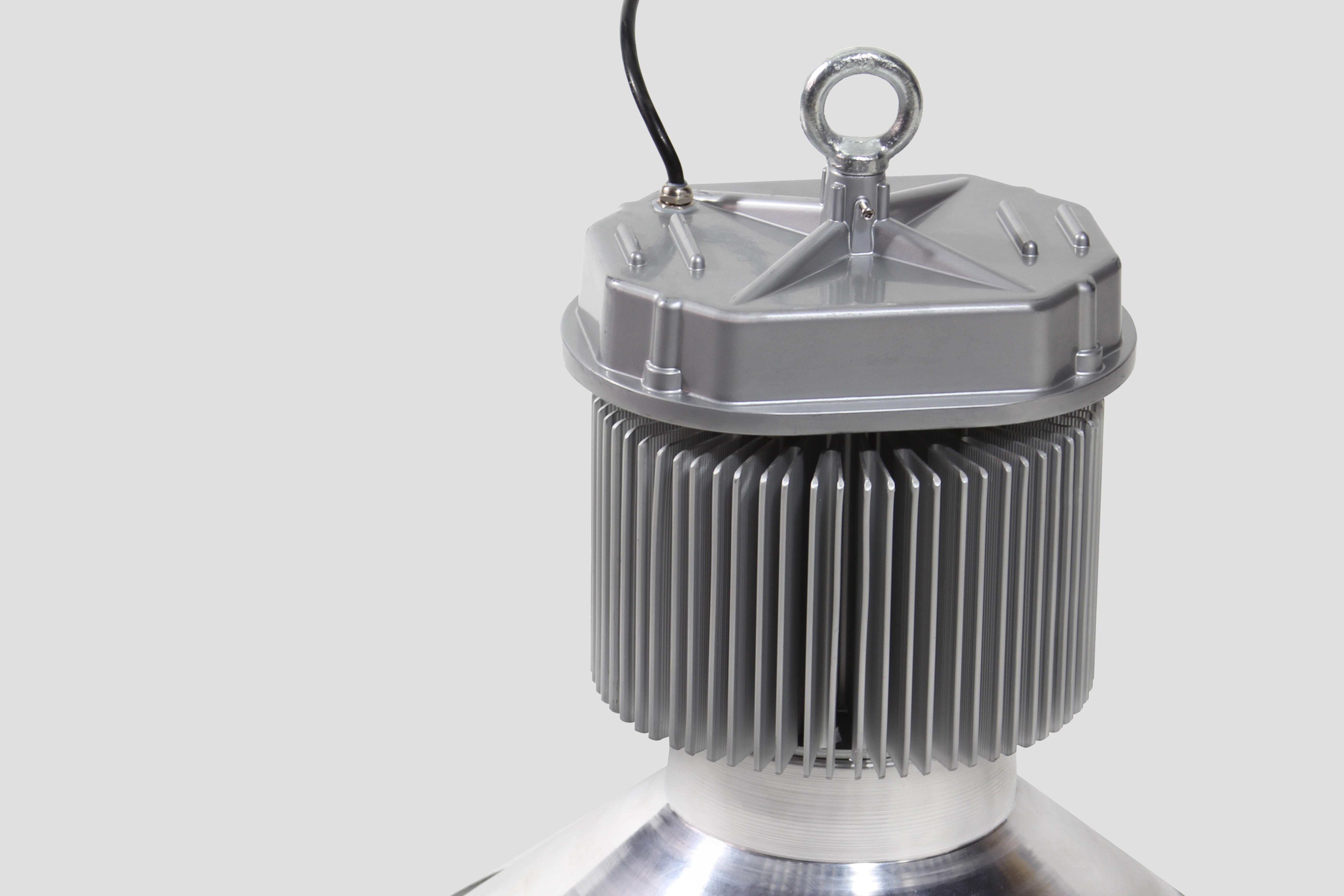

  • Modular, solid-state housing & heat sink

LAMP

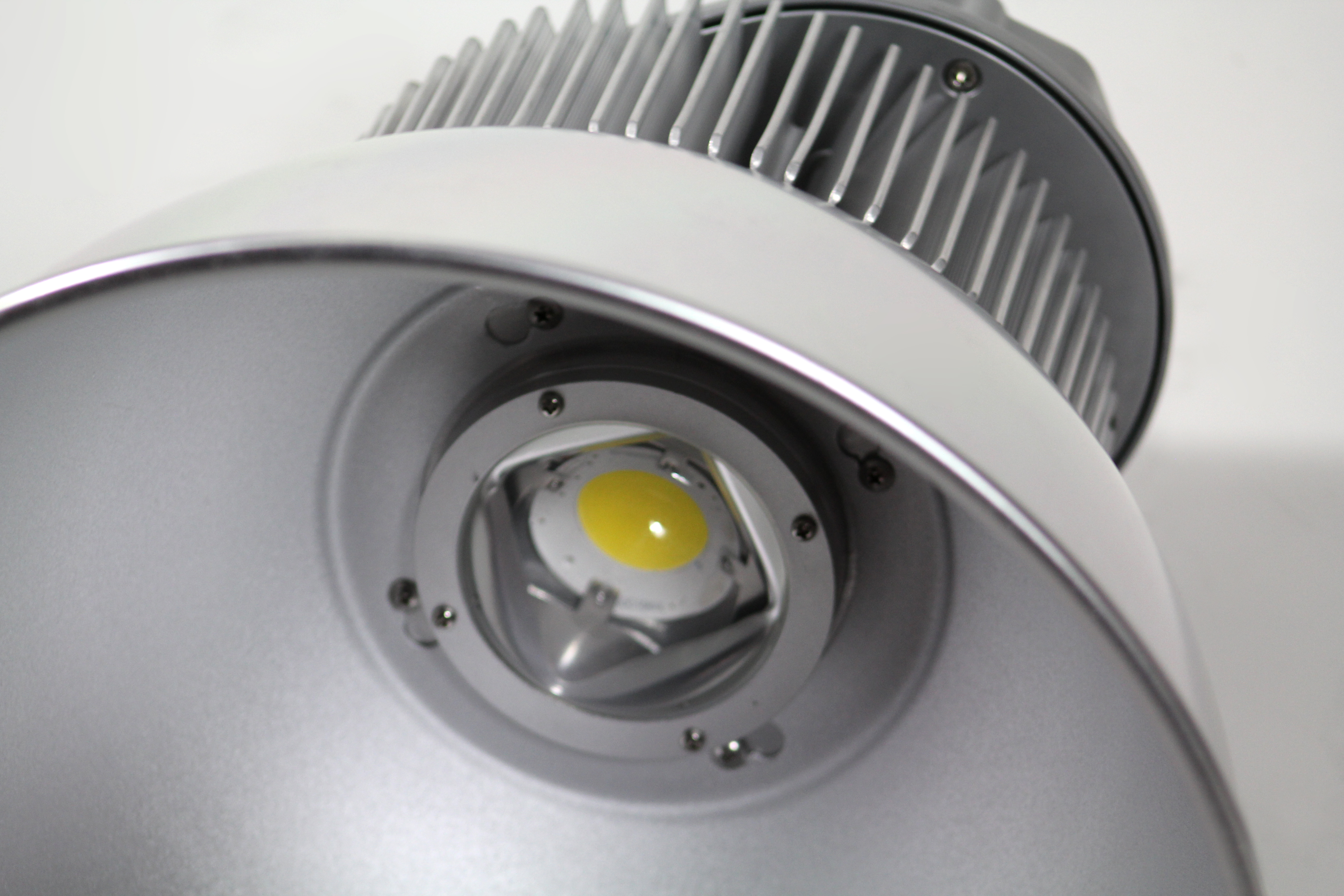

  • Osram Oslon Square or Bridgelux Vero 29 LED Chip
  • 5000K color temperature for a visually brighter white light

ELECTRICAL

  • 10' power cord with optional plug
  • 700mA, 2100mA, or 2800mA drive current
  • 0.99 power factor
  • Variable voltage: 120V–277V

REFLECTORS

  • 45o, 90o, & 120o Spun Aluminum, or 90o Polycarbonate
  • Field Interchangeable, screw installation

WARRANTY

  • Seven (7) year warranty.

CERTIFICATIONS (PENDING)

  • Design Light Consortium, ETL/cETL, LM79, LM80, NOM MX
